| SPECIFICATION | ||||||
| Model (mm) | Inside Diameter (mm) | Inner Rubber Thickness (mm) | Hose Thickness (mm) | Outside Diameter (mm) | Max Safety Factor | Bending Radius (mm) |
| 2" | 51.0±0.5 | 4.5±0.5 | 11.4±0.75 | 73.8±1.0 | 2.5 | 250 |
| 2.5" | 63.5±0.8 | 4.5±0.5 | 11.7±0.75 | 87.4±1.0 | 2.5 | 300 |
| 3" | 76.0±1.0 | 5.5±0.5 | 13.0±1.0 | 107.0±1.2 | 2.5 | 320 |
| 3.5" | 89.0±1.0 | 5.5±0.5 | 16.4±1.0 | 122.0±1.5 | 2.5 | 350 |
| 4" | 102.0±1.0 | 5.5±0.5 | 16.4±1.0 | 134.8±1.7 | 2.5 | 400 |
| 4.5" | 114.0±1.0 | 5.5±0.5 | 19.6±1.0 | 153.0±1.5 | 2.5 | 500 |
| 5" | 127.0±1.0 | 5.5±0.5 | 19.6±1.0 | 166.0±2.0 | 2.5 | 600 |

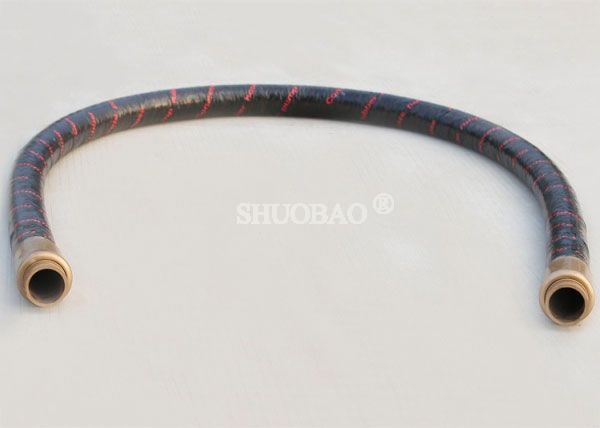

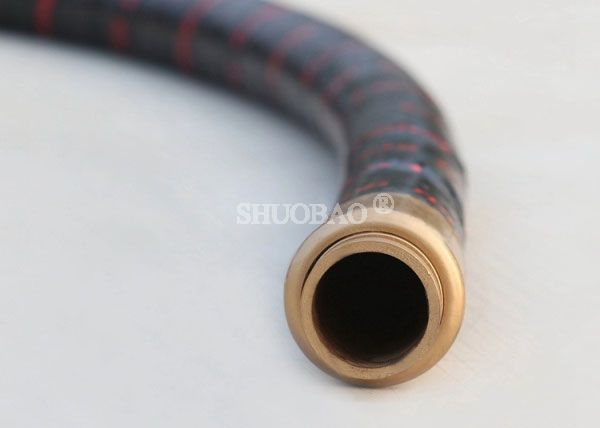

Specially developed premium hose for conveying concrete using concrete pumps.
Suitable for conveying highly abrasive media such as concrete, cement and plaster.
Long service life due to abrasion resistant tube. Flexible and easy to handle, with good kink resistance due to a special hose design. Suitable for reverse pumping, for easy cleaning.
Temperature Range: -35°C / +80°C
Safety Factor: 2:1
Tube: NR/SBR/BR, black, smooth, anti-static, abrasion resistant
Reinforcement: steel cord wrapped
Cover: SBR, black, anti-static, cloth impression
| SPECIFICATION | ||||||
| Model (mm) | Inside Diameter (mm) | Inner Rubber Thickness (mm) | Hose Thickness (mm) | Outside Diameter (mm) | Max Safety Factor | Bending Radius (mm) |
| 2" | 51.0±0.5 | 4.5±0.5 | 11.4±0.75 | 73.8±1.0 | 2.5 | 250 |
| 2.5" | 63.5±0.8 | 4.5±0.5 | 11.7±0.75 | 87.4±1.0 | 2.5 | 300 |
| 3" | 76.0±1.0 | 5.5±0.5 | 13.0±1.0 | 107.0±1.2 | 2.5 | 320 |
| 3.5" | 89.0±1.0 | 5.5±0.5 | 16.4±1.0 | 122.0±1.5 | 2.5 | 350 |
| 4" | 102.0±1.0 | 5.5±0.5 | 16.4±1.0 | 134.8±1.7 | 2.5 | 400 |
| 4.5" | 114.0±1.0 | 5.5±0.5 | 19.6±1.0 | 153.0±1.5 | 2.5 | 500 |
| 5" | 127.0±1.0 | 5.5±0.5 | 19.6±1.0 | 166.0±2.0 | 2.5 | 600 |
Specially developed premium hose for conveying concrete using concrete pumps.
Suitable for conveying highly abrasive media such as concrete, cement and plaster.
Long service life due to abrasion resistant tube. Flexible and easy to handle, with good kink resistance due to a special hose design. Suitable for reverse pumping, for easy cleaning.
Temperature Range: -35°C / +80°C
Safety Factor: 2:1
Tube: NR/SBR/BR, black, smooth, anti-static, abrasion resistant
Reinforcement: steel cord wrapped
Cover: SBR, black, anti-static, cloth impression
