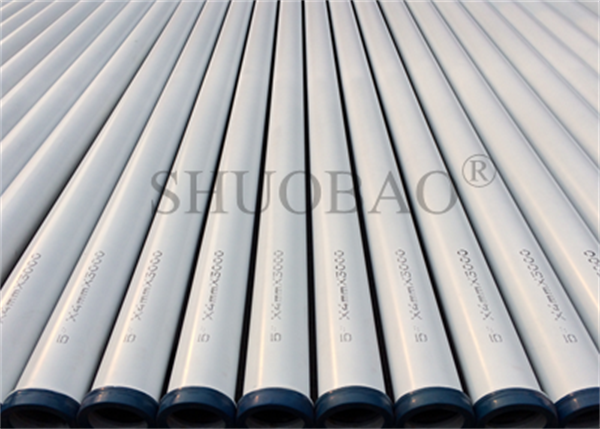

SPECIFICATION | |
Type | DN125 |
Material | ST52/Q235 |
Flange O.D. | SK Flange |
Pipe O.D. (mm) | 133 |
Thick (mm) | 4.0 |
Unit Weight (kg) | 39 |
Geometric Dimension Tolerance (mm) | 3000±1.5 |
Pressure (bar) | 130 |
Weld Tensile Strength (MPa) | ≥410 |
Surface Coating | Ordinary Air - Dry Paint |
Use | Stationary Pump |
For stationary pump, brands as PUTZMEISTER, SCHWING, SANY, JUNJIN, KCP, etc.
Thickness: 4.0mm~11mm
Length: 1m, 2m, 3m, 4m, 5m, 6m, 7m, 8m, 9m
Flange: SK Flange, HD Flange
Welding: Automatic welding & Painting(simply spraying painting or powder baked painting)
Color: As customers’ requirement
Surface Treatment: Painting & Electrostatic spraying
