SPECIFICATION | |

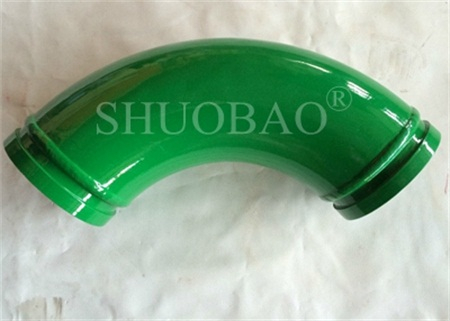

Name | Twin Wall Bend Pipe |
DN (in./mm) | 5.5’’/DN125 |
Bend Radius/Angle | R275 90° |
Structure | Compound Structure |
Material | GX350+ST52 |
Weight (kg) | 15.3 |
Manufacture Process | Precision Casting Pushed/ Polymer Filling Automatic Welding |
Dimension and Degree Tolerance | ≤1mm/1° |
Pressure (bar) | 160 |
Weld Tensile Strength (MPa) | ≥580 |
Surface Coating | Baking Paint |
For pump truck mainly,
R275* 15Degree
R275* 30Degree
R275* 45Degree
R275* 60Degree
R275* 90Degree
Structure: Our twin wall elbow is composed of inner wall and protective layer outside, intermediate is stuffed by polymeric damping material.
Application: Used by concrete pump boom truck which have higher requirements for the end elbow which connected with rubber hose.
Advantage: The super wear resistance, the protective layer with explosion-proof safety, and buffer layer can effectively absorb the impact force from both within and outside the tank.
