SPECIFICATION | |

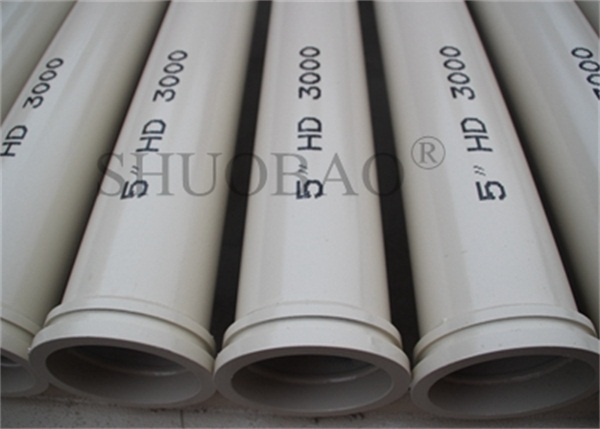

Type | DN125×5.0MM×3M, Seamless |
Material | ST52 |
Flange O.D. | HD Flange |
Pipe O.D. (mm) | 139.7 |
Thick (mm) | 5.0 |
Unit Weight (kg) | 51 |
Geometric Dimension Tolerance (mm) | 3000±1.5 |
Pressure (bar) | 190 |
Weld Tensile Strength (MPa) | ≥410 |
Surface Coating | Ordinary Air - Dry Paint |
Use | Stationary Pump |
For stationary pump, brands as PUTZMEISTER, SCHWING, SANY, JUNJIN, KCP, etc.
Inner Diameter: DN125, DN100, DN90, DN80, DN76, DN70, DN65, DN60
Thickness: 4.0mm~11mm
Flange: SK Flange, HD Flange, ZX Flange, FM Flange
Complete with SK 148mm
Welding: Automatic welding & Painting(simply spraying painting or powder baked painting)
Color: As customers’ requirement
Surface Treatment: Painting & Electrostatic spraying
