SPECIFICATION | |

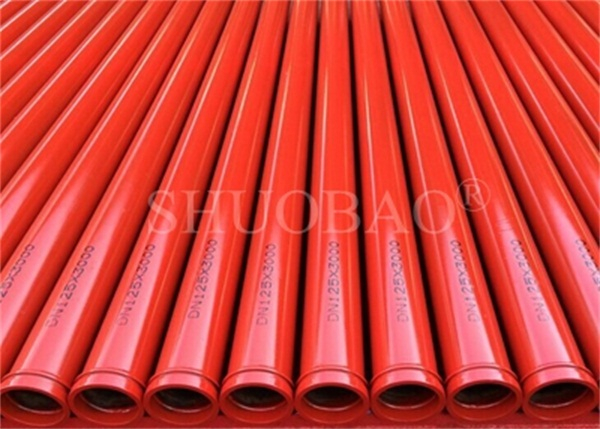

Type | DN125×4.5MM×3M, Seamless |
Material | ST52 |
Flange O.D. | 148mm |
Pipe O.D. (mm) | 133 |
Thick (mm) | 4.5 |
Unit Weight (kg) | 45 |
Geometric Dimension Tolerance (mm) | 3000±1.5 |
Pressure (bar) | 160 |
Weld Tensile Strength (MPa) | ≥410 |
Surface Coating | Ordinary Air - Dry Paint |
Use | Stationary Pump |
Flange: SK Flange
Welding: Automatic welding & Painting(simply spraying painting or powder baked painting)
Packing: Seaworthy packing, usually pipe flange with caps
