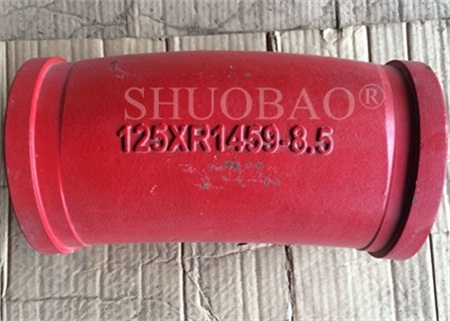

SPECIFICATION | |
DN (in./mm) | 5.5’’/DN125 |
Bend Radius/Angle | R1495 8.5° |
Material | ZGMn13-4 |
Weight (kg) | 9.3 |
Manufacture Process | Precision Casting |
Dimension and Degree Tolerance | ≤1mm/1° |
Pressure (bar) | 200 |
Flange Section | Precision Machining |
Surface Coating | Epoxy Resin Paint |
Specially applied for XCMG Concrete Boom Pump.
Casting elbow boom wear resistant bend pipe following characteristics:
1. The process is simple, easy to operate production yield.
2. Since the process is characterized by high precision tooling size, using an inner tube lined with real high vacuum in the tube by suction casting, so the product , the precise size , density is good.
3. Using the method of vacuum casting process resistant alloy composite pipe production and elbow, homogeneous and stable performance. Does not appear, cracks holes and other phenomena.
Good thermal shock performance.
Since the inner tube composite wear, thermal expansion coefficient of the outer layer equivalent to a high level and constantly changing rapidly changing conditions occasions inner fragmentation does not occur, the phenomenon of early failure occurred small pipe system running resistance, beautiful appearance beauty .
Transportation, installation and ease of use.
Alloy composite pipe and elbow quick connector or flange can be welded directly mounted . As the fight against high- performance composite pipe , the pipe diversion occurs when a partial plugging free to percussion , arbitrary cutting , unloading change , installation , maintenance is very convenient.
Alloy composite wear-resistant pipe applications.
1. Power plants and coal transportation systems, dry ash conveying pipe.
2. Stone Coal power plant systems.
3. He other a powder pneumatic conveying systems.
4. Hydraulic transmission systems and larger particle size slag slurry transportation.
5. Other mining material handling.
Casting elbow boom wear resistant bend pipe has excellent abrasion resistance, heat resistance, mechanical and thermal shock resistance, easy soldering and mounting, especially for wear, erosion serious material handling applications, such as coal-fired power generation, metallurgy, coal, mining, geology pipeline transportation of materials and other industries.
